LUMINARIAS LED SPOT FÊNIX 2

luminaria led downlight fenix 2
luminaria led downlight fenix 2



luminaria led downlight fenix 2

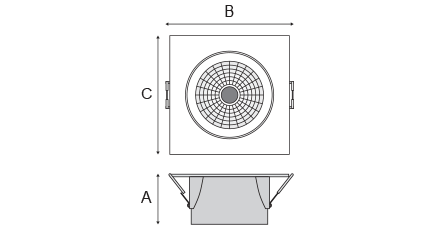

Dimensiones Cuad.ABC
3W43mm75mm75mm
5W45mm95mm95mm
7W52mm117mm117mm

luminaria led downlight fenix 2

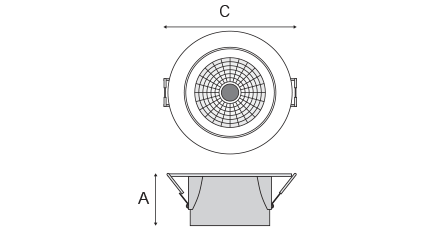

Dimensiones Red.AC
3W43mmØ75mm
5W45mmØ95mm
7W52mmØ117mm
12W56mmØ140mm



multi tensao vida util 20000hangulo abertura 40grau de protecao ip20



CódigoModeloPotenciaTemperatura de ColorFlujo LuminosoCódigo de BarrasCaja
90677MR11 CUADRADO3W3000K240lm489708282618740 unid.
90678MR11 CUADRADO3W6000K240lm489708282619440 unid.
90679MR16 CUADRADO5W3000K400lm489708282620040 unid.
90680MR16 CUADRADO5W6000K400lm489708282621740 unid.
90681PAR20 CUADRADO7W3000K560lm489708282622480 unid.
90682PAR20 CUADRADO7W6000K560lm489708282623180 unid.
90685MR11 REDONDO3W3000K240lm489708282626240 unid.
90686MR11 REDONDO3W6000K240lm489708282627940 unid.
90687MR16 REDONDO5W3000K400lm489708282628640 unid.
90688MR16 REDONDO5W6000K400lm489708282629340 unid.
90689PAR20 REDONDO7W3000K560lm489708282630980 unid.
90690PAR20 REDONDO7W6000K560lm489708282631680 unid.
90691PAR30 REDONDO12W3000K960lm489708282632380 unid.
90692PAR30 REDONDO12W6000K960lm489708282633080 unid.

*Protegido contra objetos sólidos com Ø maior que 12mm. Não protegido contra água.



datasheet
Descargue el datasheet de este producto haciendo clic en el botón anterior.
